Joints
Bones give your body its frame. But a frame that could not bend would be a statue. Any place where two bones meet is a joint, and joints are where movement starts. In this chapter you will learn the two ways to sort every joint in the body. You will meet the six shapes of the free-moving synovial joints, the ones with a pocket of fluid inside. You will open up the fluid-filled case that lets them glide. And you will learn a name for each motion your body can make. Along the way, one big idea ties it all together. There is always a trade-off between how much a joint moves and how stable it stays.
By the end of this chapter you can
- Sort any joint two ways. Sort it structurally, by what it is made of (fibrous, cartilaginous, synovial). Sort it functionally, by how much it moves (synarthrosis, amphiarthrosis, diarthrosis). Then explain how the two lists line up.
- State the mobility–stability trade-off. Use a joint's build to predict where it falls.
- Name the six types of synovial joint. Say how each one moves, and give an example from the body.
- Label the parts of a synovial joint. Explain the three jobs of synovial fluid.
- Do and name the body movements in their opposite pairs. Include the special moves of the forearm, foot, and thumb.
- Tell apart the kinds of fibrous joints (suture, syndesmosis, gomphosis). Do the same for cartilaginous joints (synchondrosis, symphysis).
- Describe how the shoulder, hip, knee, and elbow are built, and the weak spot of each.
- Link common injuries to the joint parts that fail. These include sprains, dislocations, torn menisci, and arthritis.
Section 1Two ways to classify a joint
What is a joint, and why do we sort them twice?
A joint (also called an articulation) is any place where two bones come together. It can also be where bone meets cartilage, or where a tooth meets bone. That is a huge, mixed group. The seams of the skull that never move are joints. So is the shoulder, which moves a lot. To make sense of it all, experts describe every joint in two separate ways at once. Get in the habit of giving both.
The first way is structural. It asks what holds the bones together, and is there a fluid-filled space between them? By that test there are just three kinds. Fibrous joints are held by tough, dense tissue, with no space inside. Cartilaginous joints are held by cartilage, a firm, rubbery tissue, again with no space. Synovial joints have a space filled with fluid between the bones.
The second way is functional. It asks a simpler question: how much does it move? A synarthrosis does not move. An amphiarthrosis moves a little. A diarthrosis moves freely.
Movement versus stability: the great trade-off
The two ways are not random. They match up, because what holds a joint together decides how much it can move. Tie two bones with tough fibers and you get a rock-solid joint that barely moves. That is fibrous, and most often a synarthrosis. Pad them with cartilage and you get a little give. That is cartilaginous, and most often an amphiarthrosis.
Now put a slippery, fluid-filled gap between them. They can swing freely. But now only ligaments and muscles hold them in place. That is synovial, and always a diarthrosis.
This is the most important idea in the whole chapter: mobility and stability pull against each other. Mobility means how much a joint can move. Stability means how well it stays in place. Every joint in your body sits somewhere on that scale. Its design is a deal made for the job it does.
Your skull has to guard your brain. So it gives up all movement to be as stable as it can be. Your shoulder has to throw and reach. So it gives up stability to get a huge range of motion. That is exactly why the shoulder is the joint people dislocate most.
| Functional class | Movement | Usual structure | Example |
|---|---|---|---|
| Synarthrosis | Immovable | Fibrous (some are cartilaginous) | Skull sutures; a tooth in its socket |
| Amphiarthrosis | Moves a little | Cartilaginous (some are fibrous) | Pubic symphysis; discs between the vertebrae (intervertebral discs) |
| Diarthrosis | Moves freely | Synovial | Shoulder, hip, knee, elbow, fingers |
Tap through the sorting tree in the interactive. Watch how much each joint really moves.
- Every joint is described twice. One way is by structure (fibrous / cartilaginous / synovial). The other is by function (synarthrosis / amphiarthrosis / diarthrosis).
- Structure = what holds the bones and whether there is a space. Function = how much the joint moves.
- The two ways match because the material sets the motion. Fibrous → does not move. Cartilaginous → moves a little. Synovial → moves freely.
- The big theme is the mobility–stability trade-off. More movement always costs stability.
Section 2The six synovial joints
Same blueprint, six shapes
All synovial joints share the same fluid-filled design. You will see it in the next section. But the shape of the two bone ends that meet decides how the joint can move. There are six shapes, and each allows its own set of motions. A neat way to keep them straight is by their axes of movement. An axis here means a direction in which the bones can swing.
A nonaxial joint slides but does not swing. A uniaxial joint moves in one plane, or one flat path, like a door on a hinge. A biaxial joint moves in two planes. A multiaxial joint moves in all directions and can spin, too. As you go down that list, the joint can move more. And, true to this chapter's theme, it gets less stable.
| Type | Axes / movement | Where you have one |
|---|---|---|
| Plane (gliding) | Nonaxial: flat surfaces slide back and forth | Between the small wrist bones (intercarpal joints); between the facets of the vertebrae |
| Hinge | Uniaxial: bending and straightening (flexion and extension) only | Elbow, knee, finger joints |
| Pivot | Uniaxial: turning around one long axis (rotation) | Atlas–axis (shaking your head “no”); the radius at the elbow |
| Condyloid (ellipsoid) | Biaxial: flexion/extension + abduction/adduction | Knuckles (metacarpophalangeal joints); wrist |
| Saddle | Biaxial, with a wider range than condyloid | Base of the thumb (first carpometacarpal joint) |
| Ball-and-socket | Multiaxial: moves in every plane and also rotates | Shoulder and hip |
Reading the shape tells you the move
Once you can picture the shape, you can work out the motion. A hinge is a rounded end sitting in a curved trough. So it can only rock one way. Your elbow cannot swing side to side, just as a door cannot.
A ball-and-socket joint is a round head set in a cup. It can swing in any direction and spin. That is why your shoulder and hip are the two joints that move the most. The saddle joint at the base of your thumb has bones shaped like a rider on a saddle. This joint gives humans a thumb that can truly cross over to touch the fingers. It is the reason you can grip things.
Tap each of the six shapes in the interactive. See how each one moves and where you have one.
- All six synovial types share one design. The shape of the bone ends sets the movement.
- By axes: plane (nonaxial) → hinge and pivot (uniaxial) → condyloid and saddle (biaxial) → ball-and-socket (multiaxial).
- The ball-and-socket joint (shoulder, hip) moves the most. Plane joints only glide.
- The saddle joint at the base of the thumb makes the human grip possible.
Section 3Inside a synovial joint

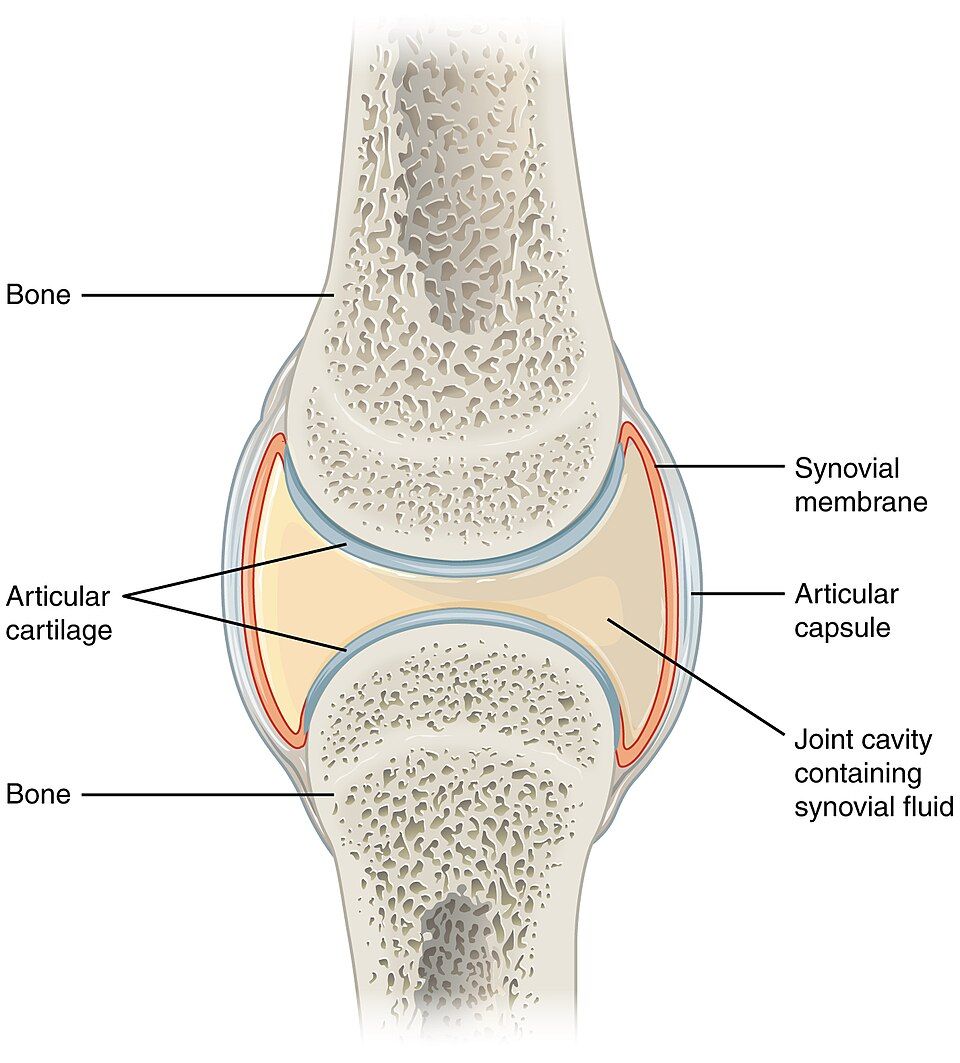

The essential parts
A synovial joint moves freely because of a small space filled with fluid. This is the joint (synovial) cavity. It sits between the two bone ends, so they never really touch. Every other part of the joint is there to guard, feed, and oil that gap. Learn these parts and you can label any synovial joint in the body.
Each bone end has a smooth cap of articular cartilage. This is glassy hyaline cartilage. It gives an almost friction-free surface and cushions the blow of every step. The whole joint is wrapped in an articular capsule with two layers.
The outer layer is the tough fibrous layer. It joins with the covering of the bones and holds everything together. The thin inner layer is the synovial membrane. It lines the space and makes the fluid inside. That fluid is synovial fluid. It fills the space like oil in a door hinge.
| Structure | What it does |
|---|---|
| Articular cartilage | Hyaline cartilage that caps each bone end; a smooth surface that absorbs shock |
| Joint (synovial) cavity | Fluid-filled space between the bones that lets them move freely |
| Articular capsule | Outer fibrous layer for strength; inner synovial membrane that makes the fluid |
| Synovial fluid | Slippery fluid full of hyaluronic acid; it oils the joint, feeds the cartilage, and absorbs shock |
| Ligaments | Bands of tough, dense tissue that tie bone to bone and make the capsule stronger |
| Bursae & tendon sheaths | Fluid-filled sacs that cushion spots where tendons or skin rub over the joint |
Synovial fluid: oil, food, and cushion
Synovial fluid does three jobs at once. First, it lubricates, or oils, the joint. Its hyaluronic acid makes it slick. So the cartilage surfaces glide with less friction than ice sliding on ice.
Second, it feeds the cartilage. Articular cartilage has no blood supply of its own. So it soaks up oxygen and food from the fluid, and it sends its waste back out into it.
Third, it absorbs shock. When you press on a joint, fluid squeezes out of the pressed cartilage. When you let go, the fluid seeps back in. This self-oiling action is called weeping lubrication. It is one reason gentle movement is good for sore joints.
Bursae: the joint's shock pads
Many joints have small, flat sacs of synovial fluid around them. These are called bursae. They sit wherever a tendon, ligament, or patch of skin would rub against bone. They work like greased cushions. If you overuse one, it can get swollen and painful. Kneeling all day or throwing overhead again and again can do this. The problem is called bursitis.
Tap each labeled part in the interactive. See how the capsule, space, cartilage, and fluid fit together.
- The key feature is a fluid-filled joint cavity that keeps the bone ends apart.
- Articular cartilage caps the bones. The articular capsule has a tough fibrous outer layer. Inside is a synovial membrane that makes the fluid.
- Synovial fluid does three jobs. It oils the joint, feeds the cartilage (which has no blood vessels), and absorbs shock.
- Bursae cushion tendons and skin over the joint. When they swell, that is bursitis. Worn cartilage causes osteoarthritis.
Section 4The movements of the body
Motions come in opposite pairs
Each movement a synovial joint makes has an exact name. The best part is that the names come in opposing pairs. Learn one and you almost know its partner. All of them are described from the anatomical position. This is the same pose you met in Chapter 1: standing tall, palms facing forward.

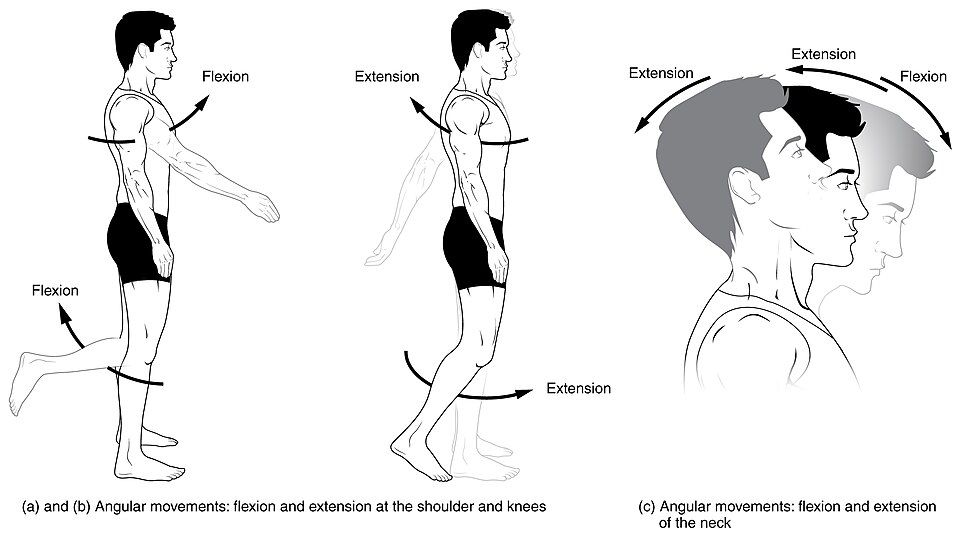

The most common pair is flexion and extension. Flexion makes the angle at a joint smaller. Bending your elbow or curling forward at the waist are examples. Extension makes the angle bigger and straightens the joint back out. Push a joint past straight and you get hyperextension. Tilting your head back to look at the ceiling is one example.
The next pair moves limbs toward or away from the midline, the center line of the body. Abduction moves a limb away from the midline. Adduction brings it back toward the midline. Now hold your arm out and trace a full cone in the air. That is circumduction. It links flexion, abduction, extension, and adduction into one circle. Last, rotation turns a bone around its own long axis. Shaking your head “no” rotates your skull on your spine.
| Movement | What happens | Everyday example |
|---|---|---|
| Flexion / Extension | Make the joint angle smaller / bigger | Bending vs. straightening the elbow |
| Abduction / Adduction | Away from / toward the midline | Raising the arm out to the side and back down |
| Circumduction | Moving a limb in a cone-shaped circle | Swinging the whole arm around like a windmill |
| Rotation | Turning a bone on its long axis | Shaking the head “no” |
| Supination / Pronation | Palm turned up / palm turned down | Turning a doorknob back and forth |
| Dorsiflexion / Plantar flexion | Toes up toward the shin / toes pointing down | Standing on your heels vs. on your toes |
| Inversion / Eversion | Sole turned inward / outward | Rolling the ankle in or out |
| Elevation / Depression | Raising / lowering a part | Shrugging the shoulders and dropping them |
The special movements
A few joints make motions that need their own names. At the forearm, supination turns the palm up, as if you were carrying soup. Pronation turns it down. At the ankle, lifting your toes toward your shin is dorsiflexion. Pointing them down is plantar flexion. Turning the sole inward is inversion, and turning it outward is eversion.
The jaw and shoulders can protract (move forward) and retract (move back). They can also elevate (lift) and depress (lower). And the thumb can do opposition. It crosses the palm to meet the fingertips. This is the movement that makes the human hand such a good tool.
Tap each movement in the interactive. Watch a body do it, and see its opposite.
- Movements are named in opposite pairs. They are defined from the anatomical position.
- Flexion/extension change a joint angle. Abduction/adduction move a limb away from or toward the midline. Rotation spins a bone on its axis. Circumduction joins these into one cone.
- Special movements include supination/pronation (forearm) and dorsiflexion/plantar flexion (foot). They also include inversion/eversion (foot), elevation/depression, protraction/retraction, and opposition of the thumb.
Section 5Fibrous & cartilaginous joints
Joints without a cavity
Not every joint is built for motion. Two of the structural classes have no synovial space. These are fibrous and cartilaginous joints. They give up movement to get the stability the body needs in certain spots. They hold bones together with tissue, not with a gap of fluid. Most of them do not move at all, or move only a little.

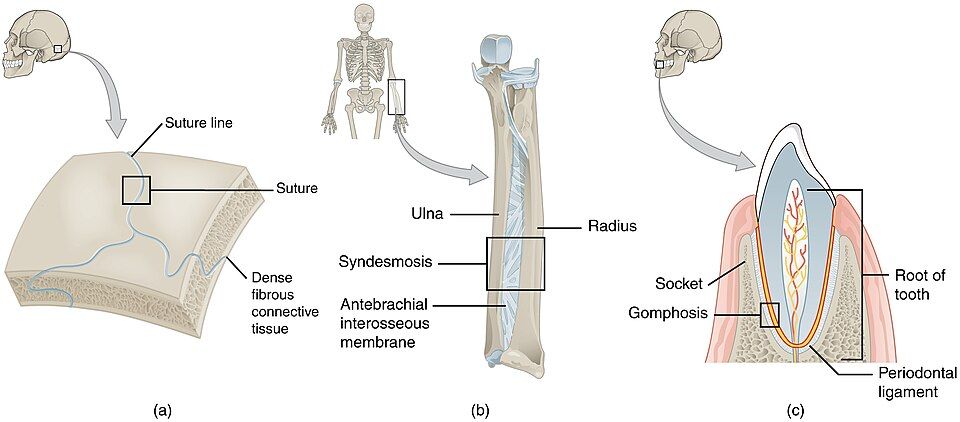

Fibrous joints: bound by tough fibers
In a fibrous joint, tough, dense tissue stitches the bones right together. There are three kinds.
A suture is the jagged, zipper-like seam between the flat bones of the skull. A thin layer of fibrous tissue holds it. It is basically immovable (a synarthrosis). That is just what a case that guards the brain should be.
A syndesmosis joins two bones that lie side by side. They are linked by a wide sheet or cord of fibrous tissue. One example is the interosseous membrane between the radius and ulna in your forearm. This joint allows a little give (an amphiarthrosis).
A gomphosis is a peg-in-a-hole joint. It holds each tooth in its bony socket. The periodontal ligament holds it in place. It is also immovable.
Cartilaginous joints: bound by cartilage
In a cartilaginous joint, cartilage holds the bones together. A synchondrosis uses hyaline cartilage, a smooth, glassy kind of cartilage. The classic example is the epiphyseal (growth) plate in a long bone that is still growing. Another is the joint between the first rib and the breastbone (sternum). Both are immovable.
A symphysis uses fibrocartilage, a tough, springy kind of cartilage. It allows a little movement (an amphiarthrosis). There are two you must know. One is the pubic symphysis at the front of the pelvis. The other is the intervertebral discs between the bones of the spine. Each disc lets the spine bend a little. Added together, all that bending gives you a flexible back.
| Structural type | Subtype | Binding material | Movement | Example |
|---|---|---|---|---|
| Fibrous | Suture | Thin fibrous tissue | Immovable | Skull seams |
| Syndesmosis | Sheet or cord of fibrous tissue | Moves a little | Radius–ulna membrane | |
| Gomphosis | Periodontal ligament | Immovable | Tooth in its socket | |
| Cartilaginous | Synchondrosis | Hyaline cartilage | Immovable | Growth (epiphyseal) plate; 1st rib to sternum |
| Symphysis | Fibrocartilage | Moves a little | Pubic symphysis; intervertebral discs |
Tap each fibrous and cartilaginous type in the interactive. See how each one gives up movement to gain stability.
- Fibrous and cartilaginous joints have no space inside. They favor stability over movement.
- Fibrous types: suture (skull, immovable), syndesmosis (radius–ulna membrane, moves a little), gomphosis (tooth, immovable).
- Cartilaginous types: synchondrosis (hyaline cartilage; growth plate; immovable) and symphysis (fibrocartilage; pubic symphysis and discs; moves a little).
- A growth plate is a short-term joint. Later it fuses into bone, forming a synostosis.
Section 6Four joints that do the work
Shoulder and hip: two ball-and-sockets, two philosophies
The shoulder and the hip are both ball-and-socket joints. Yet they solve the mobility–stability problem in opposite ways.
The shoulder (glenohumeral) joint is built for reach. The ball of the humerus rests against a shallow socket, like a ball on a saucer. This gives it the widest range of any joint in the body. The price is weakness. The socket barely holds the ball. So the muscles of the rotator cuff do most of the work of holding it in place. It is the joint people dislocate, or pop out of place, most often.
The hip joint makes the opposite deal. The head of the femur sits deep in a true cup, called the acetabulum. Thick ligaments ring it. It gives up some range to become one of the most stable joints in the body. It has to be, because it carries your whole body weight with every step.

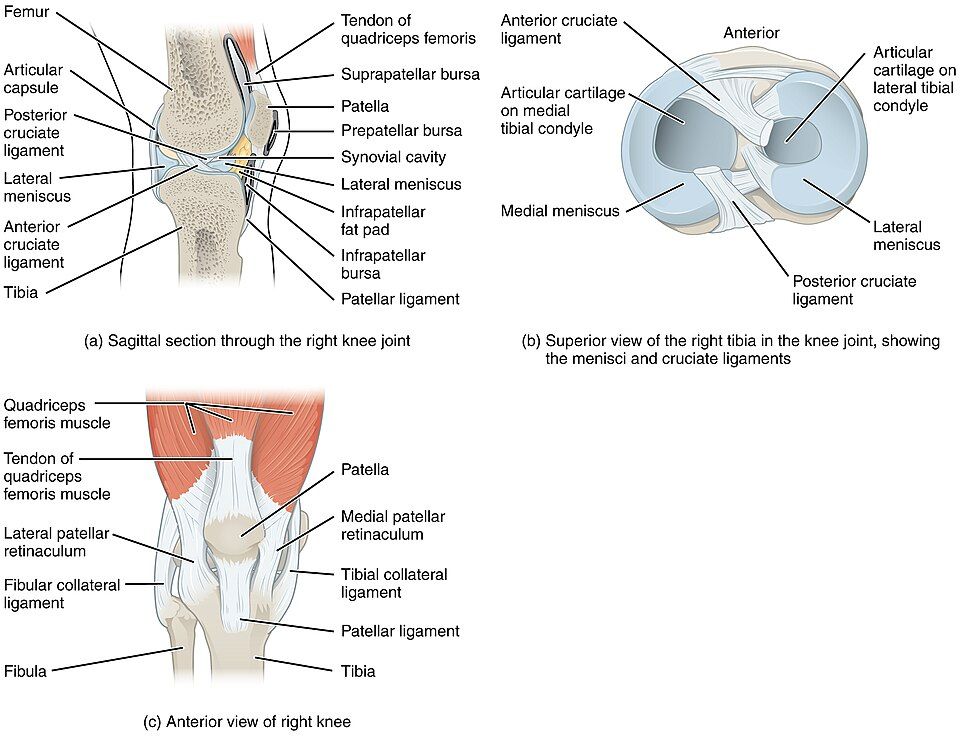

The knee: a hinge that does more than hinge
The knee is the largest and most complex joint in the body. It works mainly as a hinge, bending and straightening the leg. But it also allows a little rotation when it is bent. That is where trouble starts.
Two half-moon pads of fibrocartilage sit on top of the tibia. These are the menisci. They spread out the load and cushion the joint. Deep inside, two ligaments cross each other in an X. These are the anterior and posterior cruciate ligaments (ACL and PCL). They keep the femur and tibia from sliding past each other. A hard twist on a planted foot can tear the ACL and a meniscus together. That is why knee injuries end so many sports seasons.
The elbow: stability by design
The elbow shows what a joint looks like when the body picks stability. It is a hinge. The humerus and ulna lock together so snugly that the joint moves cleanly in one plane. It rarely dislocates. Strong collateral ligaments on each side make it even stronger.
A separate pivot joint at the radius lets the forearm rotate. This gives supination and pronation without loosening the hinge. The elbow is a quiet lesson in this chapter's theme. A joint that gives up range gains a toughness the shoulder can only wish for.
| Joint | Type | Main stabilizers | Signature injury |
|---|---|---|---|
| Shoulder (glenohumeral) | Ball-and-socket | Rotator-cuff muscles (the socket is shallow) | Dislocation; rotator-cuff tear |
| Hip | Ball-and-socket | Deep socket + thick ligaments | Fracture (often with age) |
| Knee | Hinge (+ a little rotation) | Cruciate ligaments, menisci, collateral ligaments | ACL / meniscus tear |
| Elbow | Hinge (+ pivot) | Bones lock together + collateral ligaments | Dislocation (not common) |
Tap each of the four joints in the interactive. Compare how each one balances mobility against stability.
- The shoulder moves the most because its socket is shallow. It pays for this by being the joint that dislocates most. The rotator cuff holds it steady.
- The hip is a deep ball-and-socket joint bound by ligaments. It is built to bear weight and stay stable.
- The knee is a complex hinge held steady by menisci and cruciate ligaments. Twisting injuries tear them.
- The elbow gives up range to be a snug, tough hinge. It has a pivot that lets the forearm rotate.
The chapter in one breath
- A joint is any place where two bones meet. Every joint is sorted by structure (fibrous, cartilaginous, synovial). It is also sorted by function (synarthrosis, amphiarthrosis, diarthrosis).
- The two ways match because the material sets the motion. The big theme is the mobility–stability trade-off: more movement always costs stability.
- Synovial joints are the ones that move freely. They come in six shapes: plane, hinge, pivot, condyloid, saddle, and ball-and-socket. These range from nonaxial to multiaxial.
- A synovial joint has a fluid-filled cavity between bones capped with cartilage. An articular capsule wraps it. Synovial fluid oils the joint, feeds the cartilage (which has no blood vessels), and absorbs shock.
- Movements are named in opposite pairs. These include flexion/extension, abduction/adduction, rotation, and circumduction. There are also special motions like supination/pronation and opposition.
- Fibrous joints (suture, syndesmosis, gomphosis) and cartilaginous joints (synchondrosis, symphysis) have no space inside. They favor stability. Some, like the growth plate, later fuse into bone.
- The shoulder, hip, knee, and elbow each strike the mobility–stability balance in a different way. That tells you how each one tends to get hurt.
ReferenceWords worth knowing
Here is a quick list of the terms in this chapter. Skim it now, or come back when a word trips you up.
- Abduction
- Movement of a limb away from the midline of the body. Raising your arm out to the side is an example.
- Adduction
- Movement of a limb toward the midline, back to the body.
- Amphiarthrosis
- A joint that moves a little. Examples are the pubic symphysis and an intervertebral disc.
- Articular capsule
- The two-layer sleeve that wraps a synovial joint. It has a tough fibrous outer layer and a synovial membrane inside that makes fluid.
- Articular cartilage
- The smooth hyaline cartilage that caps each bone end in a synovial joint. It cuts friction and absorbs shock.
- Bursa
- A small sac of fluid that cushions a spot where a tendon, ligament, or skin rubs over bone. When it swells, that is bursitis.
- Circumduction
- Moving a limb in a cone shape. It joins flexion, abduction, extension, and adduction in order.
- Diarthrosis
- A joint that moves freely. All synovial joints are diarthroses.
- Fibrous joint
- A joint where tough, dense tissue binds the bones right together, with no space inside. Types are the suture, syndesmosis, and gomphosis.
- Flexion
- A movement that makes the angle at a joint smaller, such as bending the elbow.
- Gomphosis
- The immovable peg-in-a-hole fibrous joint that holds a tooth in its socket. The periodontal ligament holds it in place.
- Ligament
- A band of tough, dense tissue that joins bone to bone and makes a joint stronger.
- Meniscus
- A half-moon pad of fibrocartilage between bone ends, as in the knee. It spreads the load and helps the bones fit.
- Suture
- An immovable fibrous joint. Sutures form the zipper-like seams between the flat bones of the skull.
- Symphysis
- A cartilaginous joint that moves a little, joined by fibrocartilage. Examples are the pubic symphysis and intervertebral discs.
- Synarthrosis
- A joint that does not move, such as a skull suture.
- Synchondrosis
- A cartilaginous joint joined by hyaline cartilage, such as the growth (epiphyseal) plate.
- Syndesmosis
- A fibrous joint where a sheet or cord of tissue links two bones. It allows a little movement, as between the radius and ulna.
- Synovial fluid
- The slippery fluid that fills a joint space. It is rich in hyaluronic acid. It oils the joint, feeds the cartilage, and cushions.
- Synovial joint
- A joint that moves freely. It has a fluid-filled space between bones capped with cartilage, all wrapped in a capsule.
